Diffusion Stabilizer Policy for Automated Surgical Robot Manipulations

Ho, Chonlam; Hu, Jianshu; Song, Lei; Wang, Hesheng; Dou, Qi; Ban, Yutong

Diffusion Stabilizer Policy for Automated Surgical Robot Manipulations

Chonlam Ho^*, Jianshu Hu^*, Lei Song, Hesheng Wang, Qi Dou, Yutong Ban

UM-SJTU Joint Institute, Shanghai Jiao Tong University The Chinese University of Hong Kong Shanghai Jiao Tong University
^*Equal contribution

Paper Code arXiv

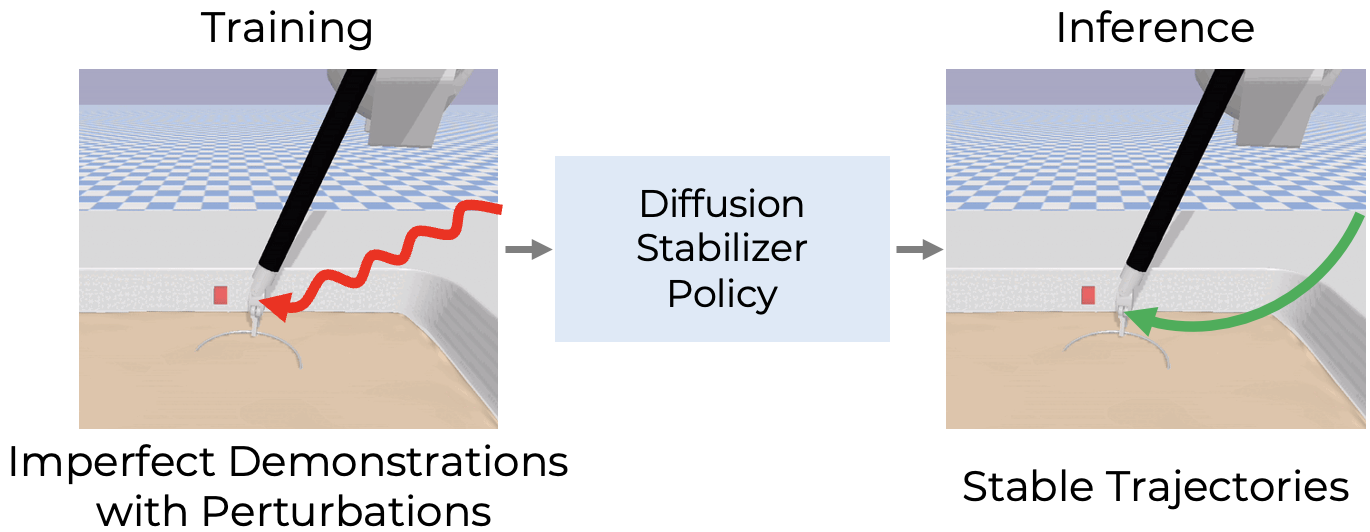

Overview of Diffusion Stabilizer Policy showing perturbed demonstrations during training and stable trajectories during inference

Diffusion Stabilizer Policy first learns on clean demonstrations, then filters mixed clean and perturbed data with action prediction error so the final policy produces more stable surgical manipulation trajectories.

Introduction Video

Abstract

Intelligent surgical robots have the potential to revolutionize clinical practice by enabling more precise and automated surgical procedures. However, automation for surgical tasks remains under-explored compared with recent progress on household manipulation. To extend modern policy learning methods to surgical robotics, this work proposes Diffusion Stabilizer Policy (DSP), a diffusion-based policy learning framework that enables training with imperfect, perturbed, or even failed trajectories. DSP first trains a diffusion stabilizer policy using only clean data, then continuously updates the policy with a mixture of clean and perturbed data filtered by action prediction error. Experiments in both simulation and real-world settings demonstrate superior performance under different perturbation types.

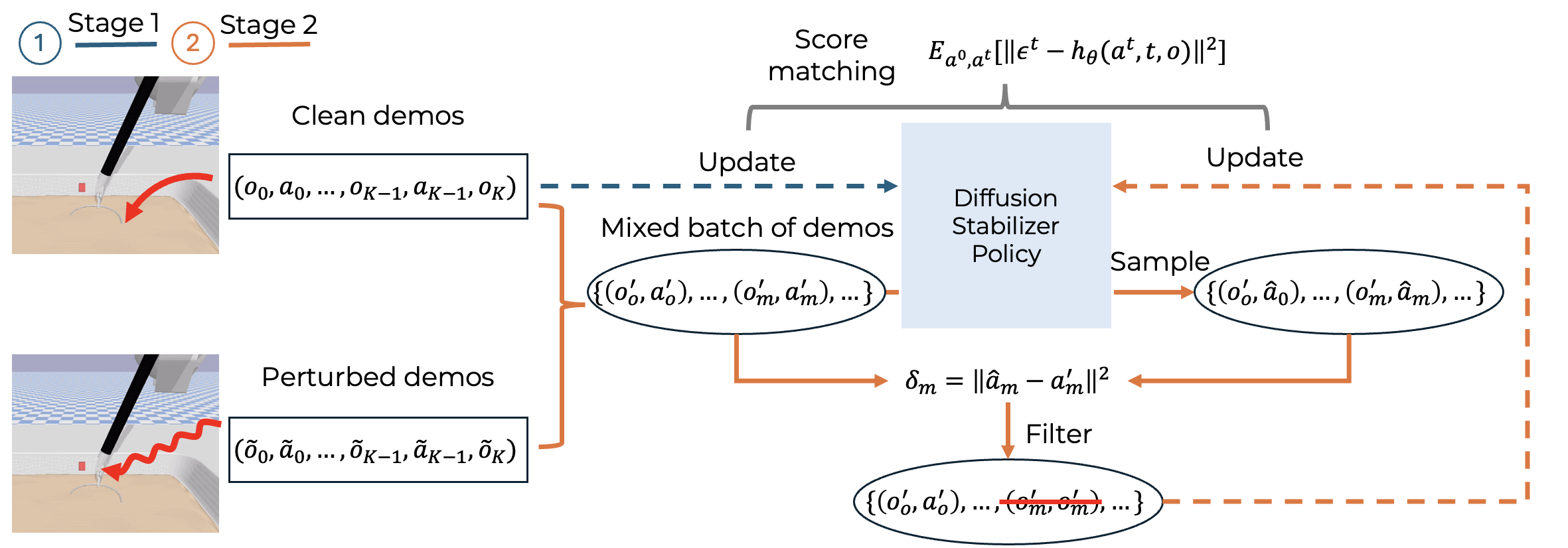

Two-stage training framework of Diffusion Stabilizer Policy with clean demonstrations, perturbed demonstrations, filtering, and policy updates

An overview of the framework The training framework first learns on clean demonstrations, then filters a mixed batch of clean and perturbed samples according to the error between predicted and recorded actions before continuing policy updates.

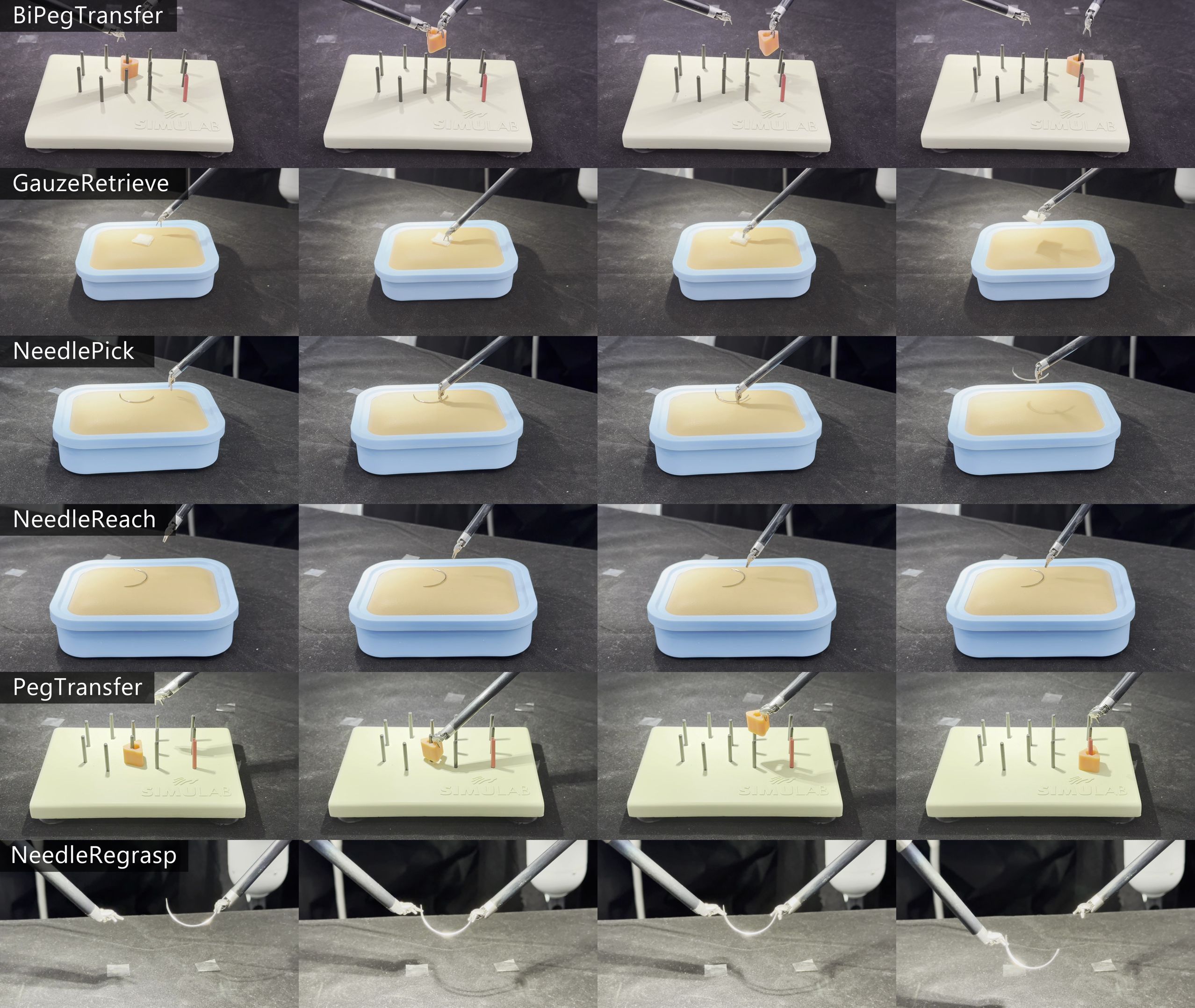

Keyframe sequences of six real-world surgical robot tasks including BiPegTransfer, GauzeRetrieve, NeedlePick, NeedleReach, PegTransfer, and NeedleRegrasp

Real-world task executions Keyframe sequences of task executions on the real robotic platform; each row shows one surgical task and each column represents a similar execution phase such as approach, grasp, transfer, or placement.

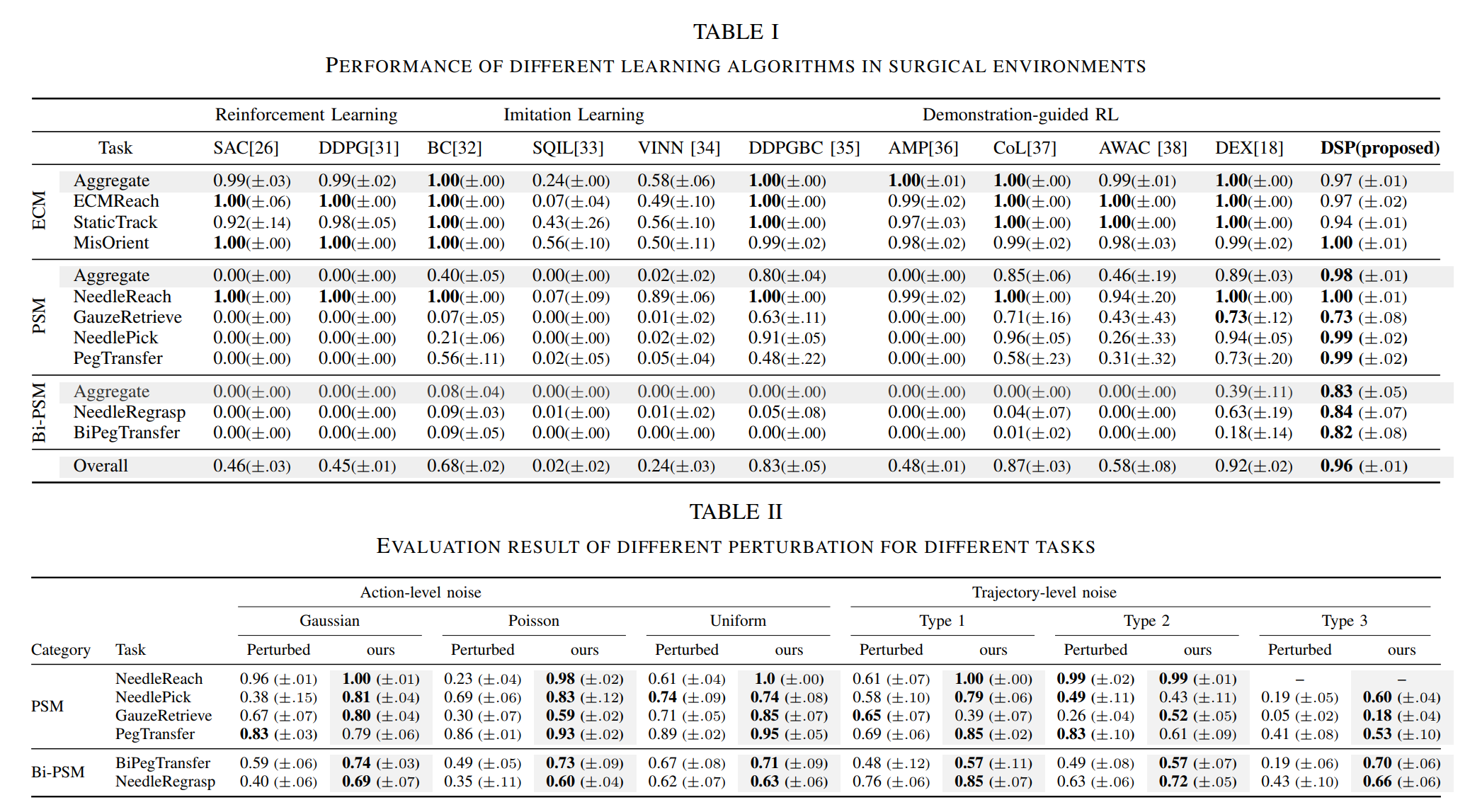

Tables comparing DSP with reinforcement learning, imitation learning, and demonstration-guided reinforcement learning baselines under different perturbation settings

Quantitative main results Tables I and II from the paper. The reported results compare DSP against multiple baselines across ECM, PSM, and Bi-PSM tasks, and evaluate performance under different action-level and trajectory-level perturbations.

BibTeX

@misc{ho2026diffusionstabilizerpolicyautomated,
      title={Diffusion Stabilizer Policy for Automated Surgical Robot Manipulations},
      author={Chonlam Ho and Jianshu Hu and Lei Song and Hesheng Wang and Qi Dou and Yutong Ban},
      year={2026},
      eprint={2503.01252},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2503.01252},
}
